High-performance FGF/FFF 3D printer
The COGIT AM 333 LAB 3D printer was developed at the request of renowned Research Centers to incorporate native or optional features into an "open" and scalable laboratory printer, such as:
- COGIT pellet extruder
- "5D VISION" in-situ thermal control (COGIT exclusive)
- Local heating around the extrusion nozzle
- Heated enclosure
This machine benefits from an interface (HMI) developed specifically for the COGIT AM product range.

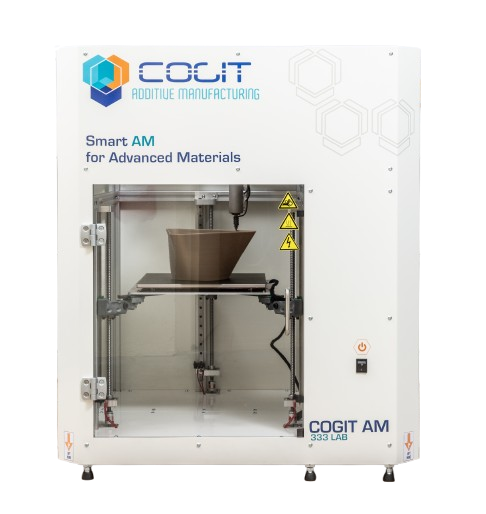

The COGIT AM 333 LAB printer is now available and you can take advantage of its many benefits...
Benefits
"Open" and scalable
Pellet extruder
Processes PEEK, PEKK, PAEK, PEI, PPSU, PPA, PC, ABS, PLA, and TPU elastomers.
In-situ Control

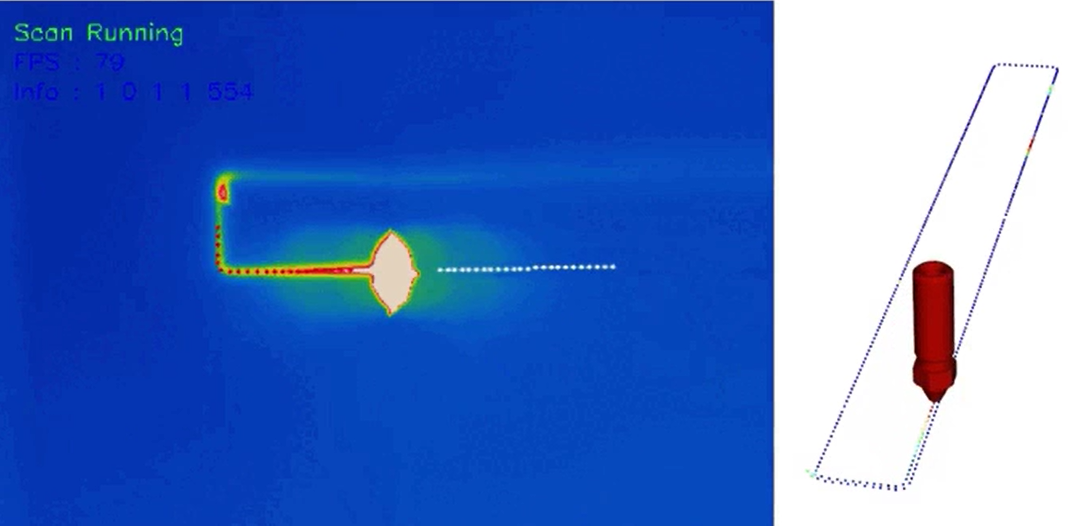

Our In Situ Thermal Control generates a digital twin as well as an NDT report consisting of a 3D point cloud with its thermal history and the location of defects detected by AI.
Spécifications techniques
| Technologie | Fabrication de granulés fondus / Fabrication de filaments fondus |
| Matières | PEEK, PEKK, PEI, PA, PPS...TPU, élastomères (nature ou renforcé en fibres courtes) MIM (inox, cuivre, molybdène) |
| Conditionnement matière | Granulés ou Filaments |
| Volume d’impression | 300 x 300 x 300 mm3 |
| Température maximum d'extrusion | 500°C |
| Température maximum du plateau | 200°C |
| Enceinte & Chauffe locale | Protégée / Options : Thermo-régulée à 150°C et/ou Chauffe localisée |
| Nombre d’extrudeur maximum | 1 |
| Vitesse d'impression maximale | 100 mm/s |
| Précision de déplacement | X,Y : 10 µm / Z : 2 µm |
| Epaisseur des couches | Mini 100 µm |
| Taille des buses | De 0.4 à 1.2 mm |
| Dimensions | 800 x 700 x 1050 mm³ |
| Connectivité | RJ45 – réseau ethernet / WIFI en option |
| Poids | env. 50Kg |
| Alimentation | 220V - 16A - 3,5 kW |
